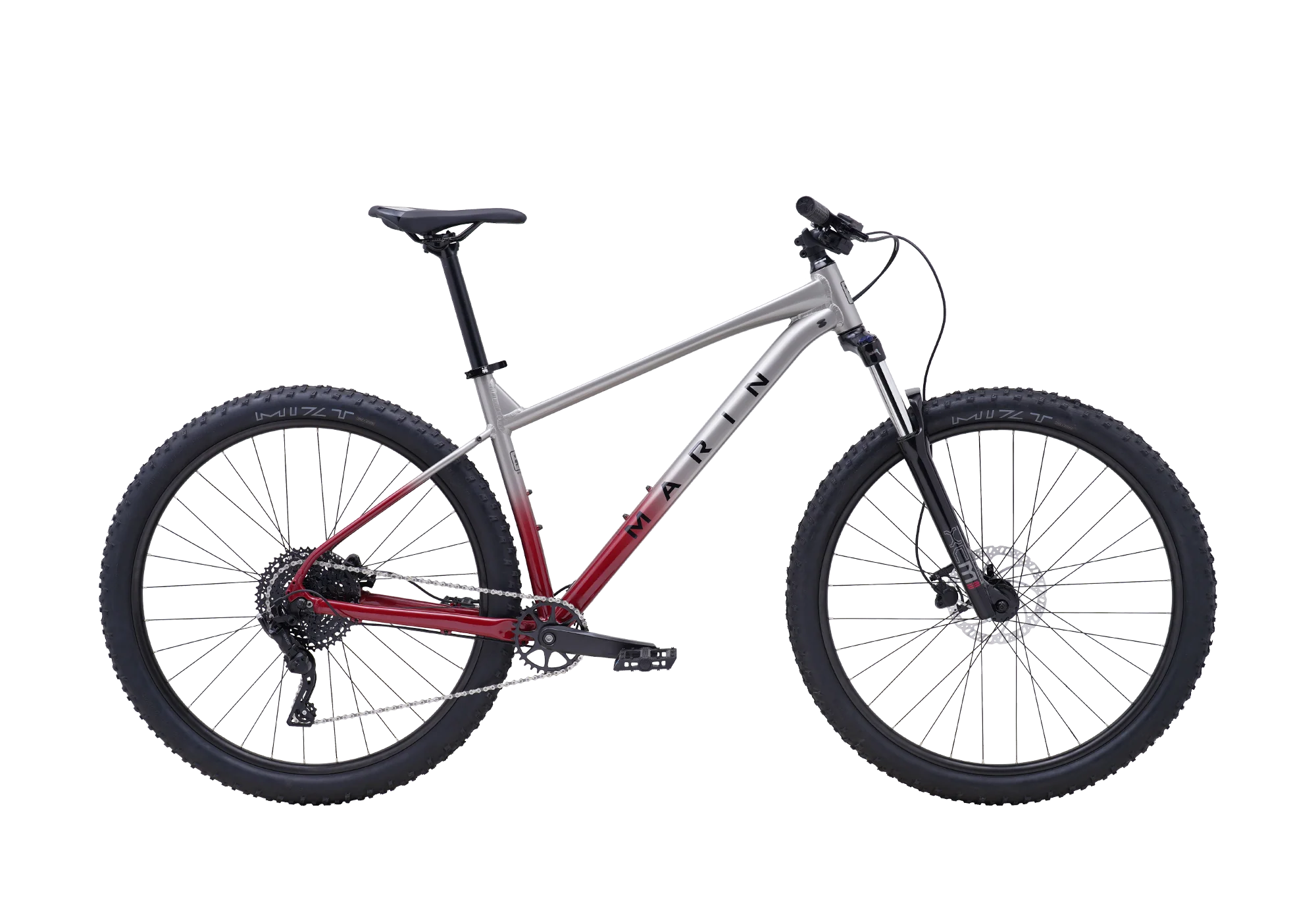

The Marin Bobcat Trail 3 is our most-affordable Bobcat model, creating the biggest smiles for the least possible dollars. At its heart, the Bobcat Trail 3 is a Series 2 aluminum frame that’s fast, comfy and fun on the trails. There are options for 27.5” and 29” wheels and the bike is built with a trail-taming SR/Suntour suspension fork, wide-range microSHIFT 9-speed drivetrain, and powerful Tektro hydraulic brakes.
Frame
Series 2 6061 Aluminum, 27.5″ or 29” Wheels, Low Standover, 68mm BB shell, 135mm Forged Dropouts, IS Chainstay Disc Mount, Internal Housing & Dropper Post Routing
Front Suspension
SR Suntour XCM HLO, 120mm Travel, Hydraulic Lockout, 46mm Offset
Rim
Marin Aluminum Double Wall, 25mm Inner, Pinned Joint, Disc Specific
Hub Rear
Forged Alloy, Disc, 32H
Hub Front
Forged Alloy, Disc, 32H
Spokes
14g Black Stainless Steel
Tires
MTB, 27.5/29×2.25″
Shift Lever
microSHIFT Advent 9 Trail
Crankset
Alloy Crank, Steel Narrow-Wide Chainring, 32T
Bottom Bracket
Sealed Cartridge Bearings, Square Taper
Chain
KMC X9
Cassette
SunRace 9-Speed, 11-46T
Brakes Front
Tektro M280 Hydraulic Disc, 180mm Rotor
Brakes Rear
Tektro M280 Hydraulic Disc, 160mm Rotor
Brake Levers
Tektro M280
Handlebar
Marin 31.8 Riser, 12mm Rise, 780mm Width
Stem
Marin Alloy, 31.8mm Clamp, 45mm
Grips
Marin MTB, Closed End
Headset
FSA No.10-P
Seatpost
Marin Alloy, 30.9
Saddle
Marin MTB
Pedals
Nylon Platform
